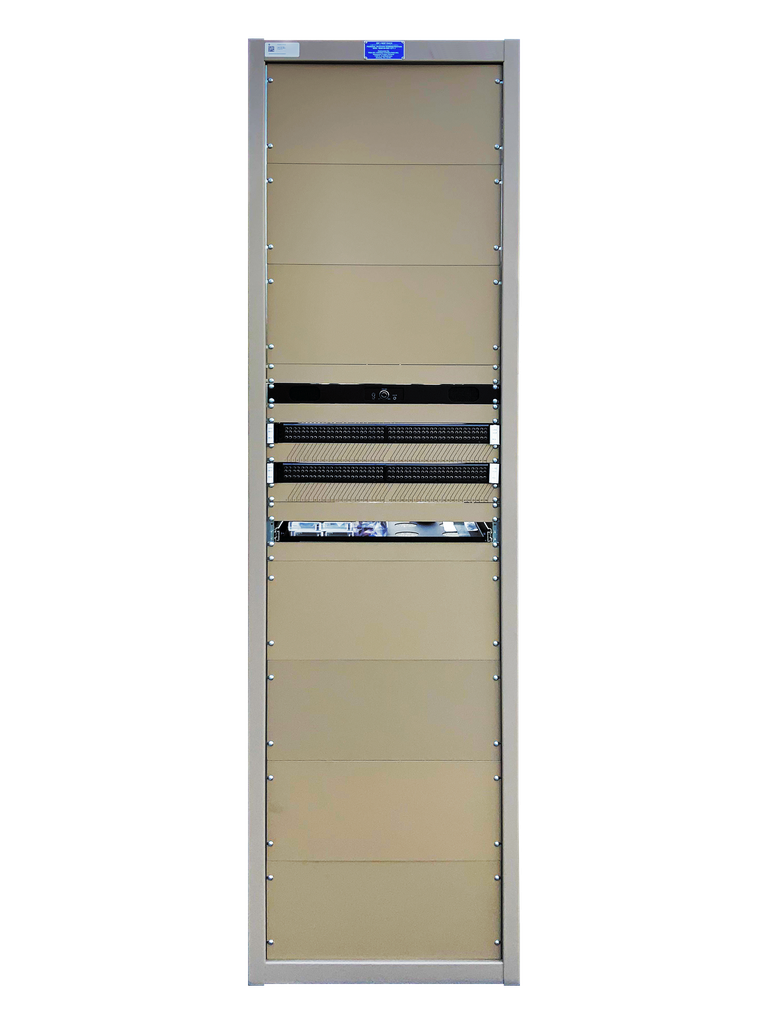

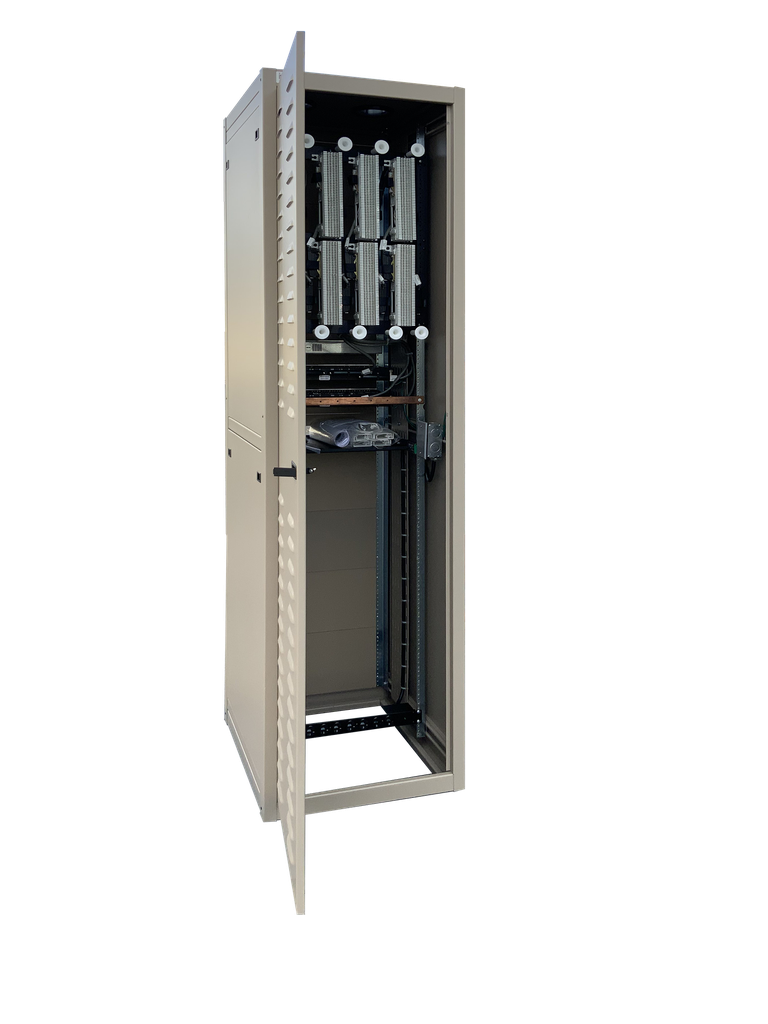

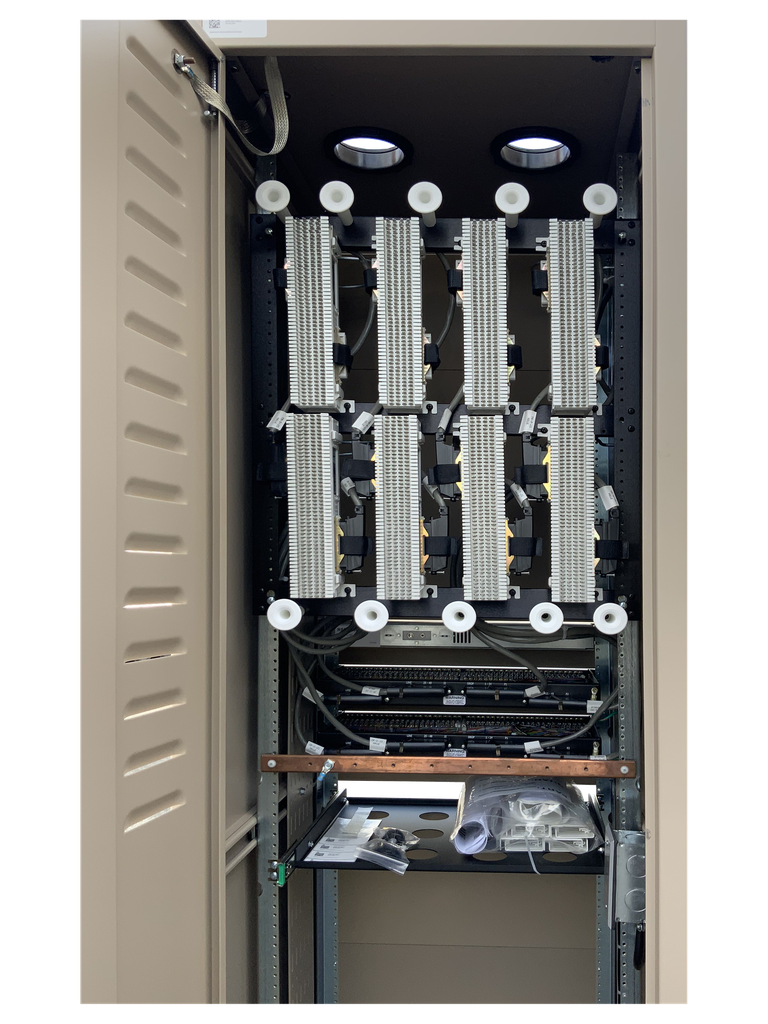

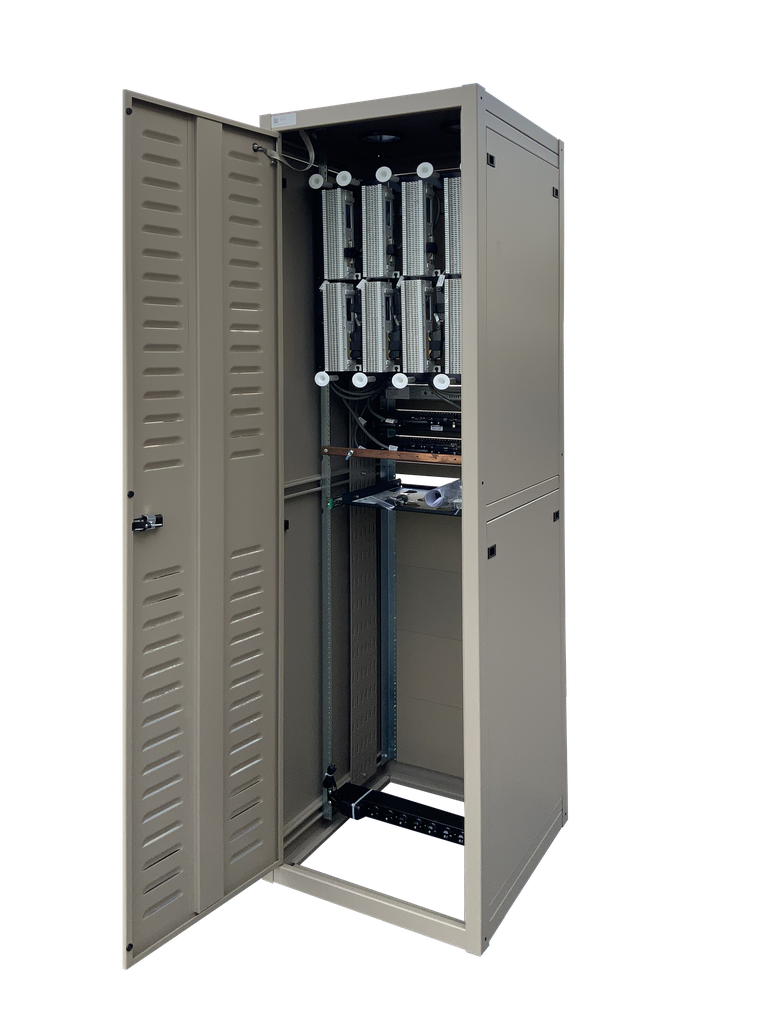

IDF 2375 Rack Configuration (Western)

NSN: 8200-00-003-2375-1


Part Number # RCA-2375-W


Integrated Demarc Frame V2 Rack (RCA-2375-W)

Engineering Drawings (PDF)

RACK LAYOUT & SCHEMATICS

PUNCHDOWN

Integrated Demarc Frame V2 Rack (RCA-2375-W)

Engineering Drawings (DGN)

RACK LAYOUT, SCHEMATICS & PUNCHDOWN

 SPECIFICATIONS:

Dimensions (OD): 83" (H) x 22" +-1/4" (W) x 22" (D)

Approx. Weight: 300lbs. (Bare rack excl. eqp.)

JF#1 Audio, JF#2 PTT
JF#1, TB#5 and TB#6
T3 Blank
