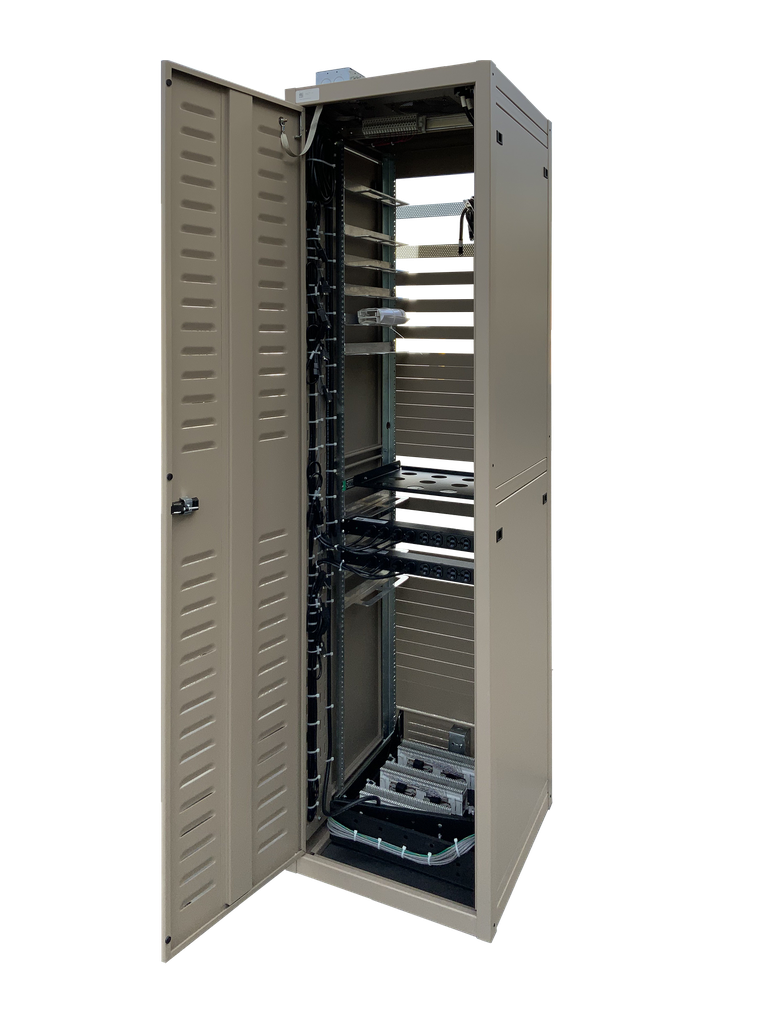

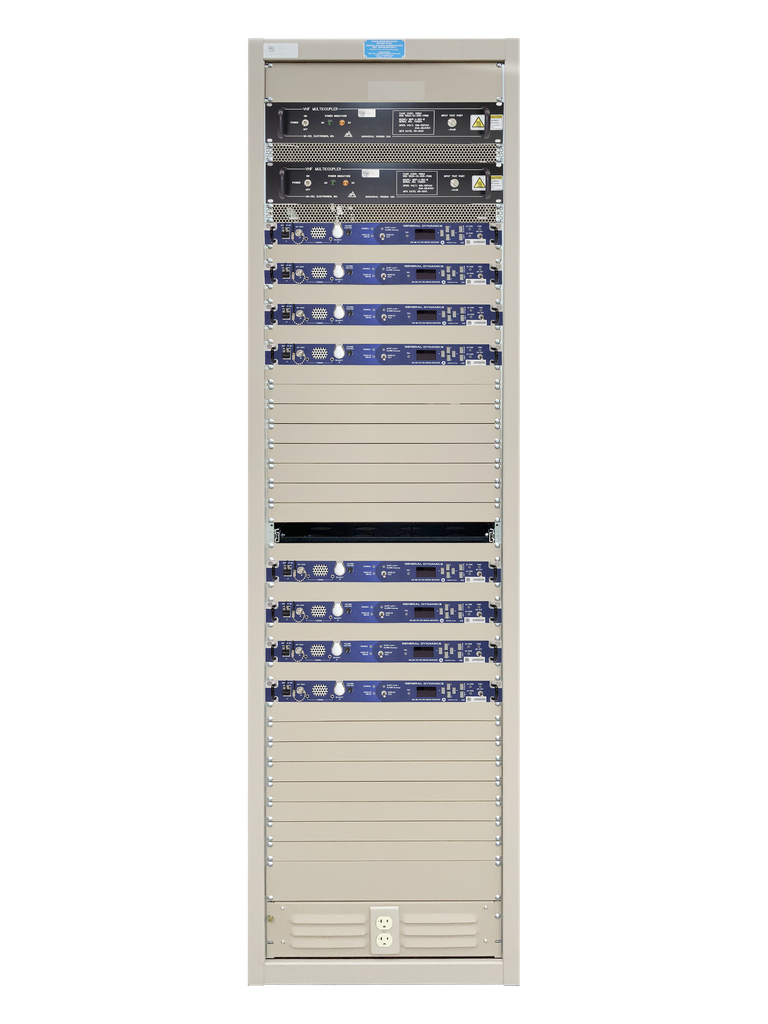

8RX MC 2379 Rack Configuration

Part Number # RCA-2379

8 Receiver w/ Multicouplers V2 Rack (8RX-MC-V2-8D

Engineering Drawings (PDF)

8 Receiver w/ Multicouplers V2 Rack (8RX-MC-V2-8D

Engineering Drawings (DGN)

SPECIFICATIONS:

Dimensions (OD): 83" (H) x 22" +-1/4" (W) x 22" (D)

Approx. Weight: 300lbs. (Bare rack excl. eqp.)

RX#
A (1,2,3,4)

RX#
A (9,10,11,12)

T3 Blank
