RT Shared Antenna V2 Rack (RT-SHARED-ANT-V2-8S)
Engineering Drawings (PDF)
RACK LAYOUT, SCHEMATICS & PUNCHDOWN)
Engineering Drawings (PDF)
RACK LAYOUT, SCHEMATICS & PUNCHDOWN)
RT Shared Antenna V2 Rack (RT-SHARED-ANT-V2-8S)
Engineering Drawings (DGN)
RACK LAYOUT, SCHEMATICS & PUNCHDOWN
Engineering Drawings (DGN)
RACK LAYOUT, SCHEMATICS & PUNCHDOWN
SPECIFICATIONS:
Dimensions (OD): 26'" (W) x 87" (L) x 14" (H)
Approx. Weight: : 300lbs.

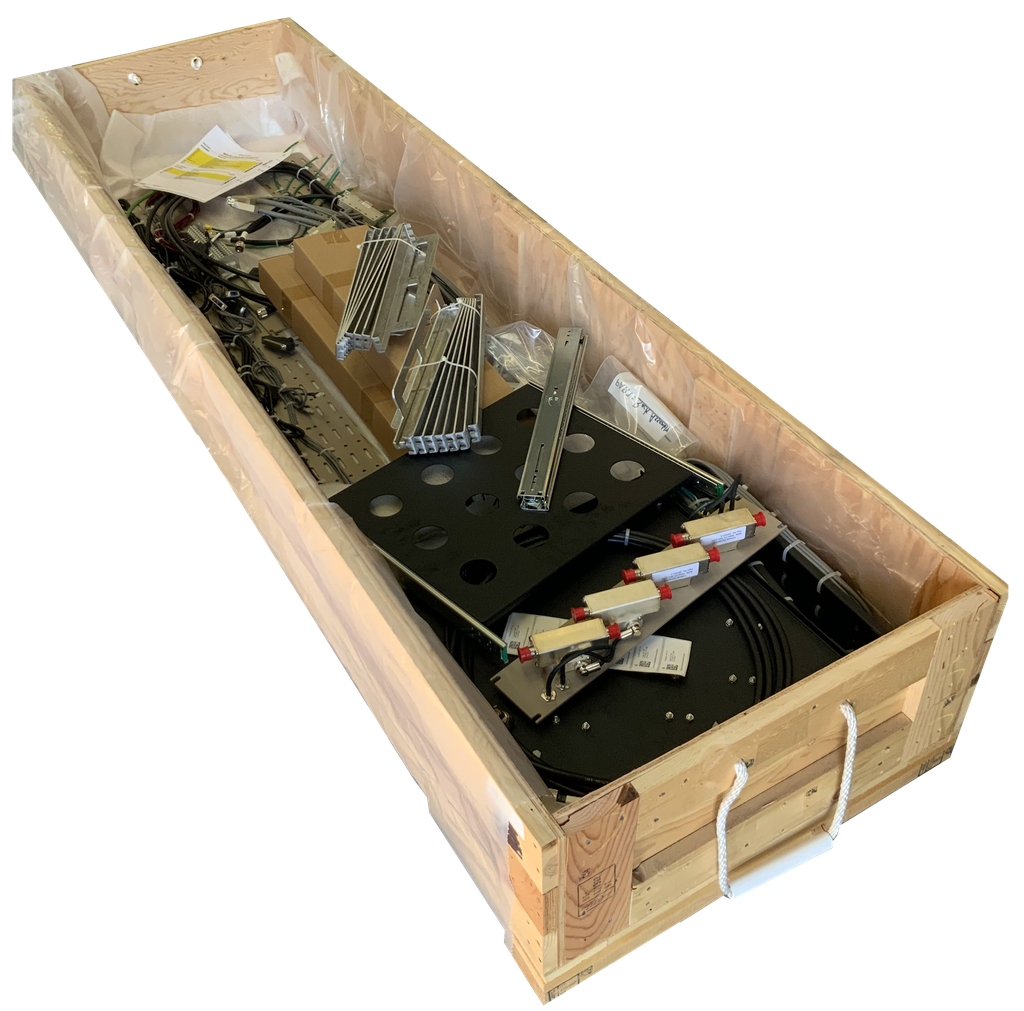

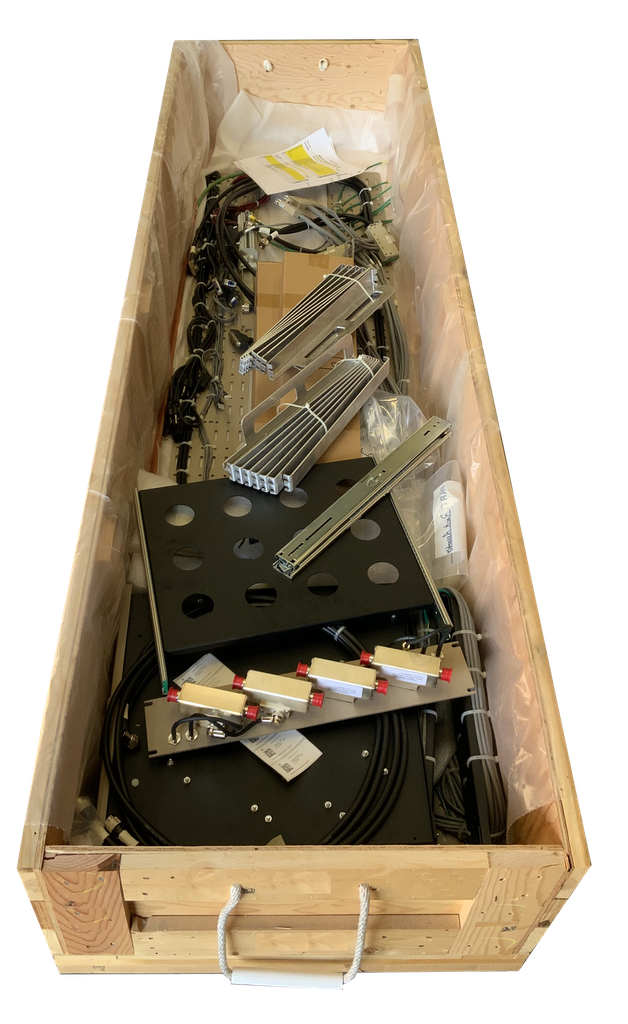

(Crate include all rack components excluding radio equipment)
Dimensions (OD): 26'" (W) x 87" (L) x 14" (H)
Approx. Weight: : 300lbs.
(Crate include all rack components excluding radio equipment)
| T1 TX# A (1,3,5,7) | T2 TX# A(2,4,6,8) | T3 Blank |
Mod-Kits Features
· Harness trays come pre-laced, wired and ready for installation
· Harness trays come pre-laced, wired and ready for installation
· Telco Blocks are pre-punched per specific rack configuration
· Pre-wiring facilitates use with existing Program Office drawings
· Pre-assembled sub-assemblies can reduce installation times compared to modifying an existing rack in the field
· Mod-Kits available for any rack configuration
· Works well for older green racks
· RF cables cut to length for specific rack configuration
· All rack components included excluding bare rack
(e.g., machine parts, assemblies, sub-assemblies, cables)
(e.g., machine parts, assemblies, sub-assemblies, cables)
