6RTR 2387 Rack Configuration

NSN: 8200-00-003-2387-1


Part Number # RCA-2387

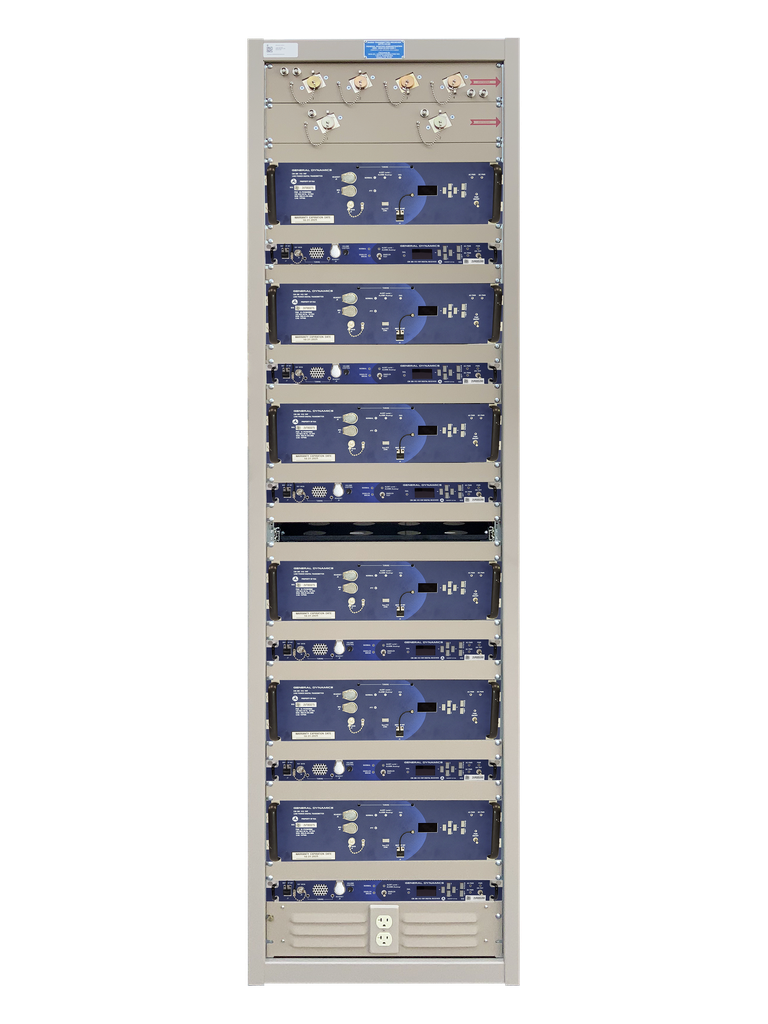

6 Receiver Transmitter V2 Rack (6RTR-V2-8S)

Engineering Drawings (PDF)

RACK LAYOUT, SCHEMATICS & ASSEMBLY


6 Receiver Transmitter V2 Rack (6RTR-V2-8S)

Engineering Drawings (DGN)

RACK LAYOUT, SCHEMATICS & PUNCHDOWN

 SPECIFICATIONS:

Dimensions (OD): 83" (H) x 22" (W) x 22" (D)
Approx. Weight: 300lbs. (Bare rack excl. eqp.)

T1 TX/RX#
A (1,2)
T2 TX/RX#    A (3,4) D (5,6)
T3 Blank
