8 Receiver w/ Multicouplers V2 Rack (8RX-NO-MC-V2-7S)
NSN: 8200-00-003-2393-1
Rack Configuration Drawings (RC)
Engineering Drawings (PDF)
Engineering Drawings (DGN) Punchdown (PDF)
Engineering Drawings (DGN) Punchdown (PDF)
Innovative Solutions.
Intelligently Applied.
We are shaping the future of air transportation with concept development, design and deployment of systems and aircraft
Mod-Kit Features
Harness trays come pre-laced, wired and ready for installation Telco Blocks are pre-punched per specific rack configuration Pre-wiring facilitates use with existing Program Office drawings Pre-assembled sub-assemblies can reduce installation times compared to modifying an existing rack in the field Mod-Kits available for any rack configuration Works well for older green racks RF cables cut to length for specific rack configuration All rack components included excluding bare rack (e.g., machine parts, assemblies, sub-assemblies, cables)
Mod-Kit Features
Harness trays come pre-laced, wired and ready for installation
Rack Dimensions (OD): 22"(W) x 74.06"(H) x 22.00"(D) * Note: Each Mod-Kit is specifically designed for it's designated rack size (above)
Mod-Kit Crate Dimensions (OD): 26"(W) x 87"(L) x 14"(H)
Weight: approx. 300 lbs (Crate includes all rack components excluding radio equipment)
RX #A (1,2,3,4)
RX #A (9,10,11,12)
T3 Blank

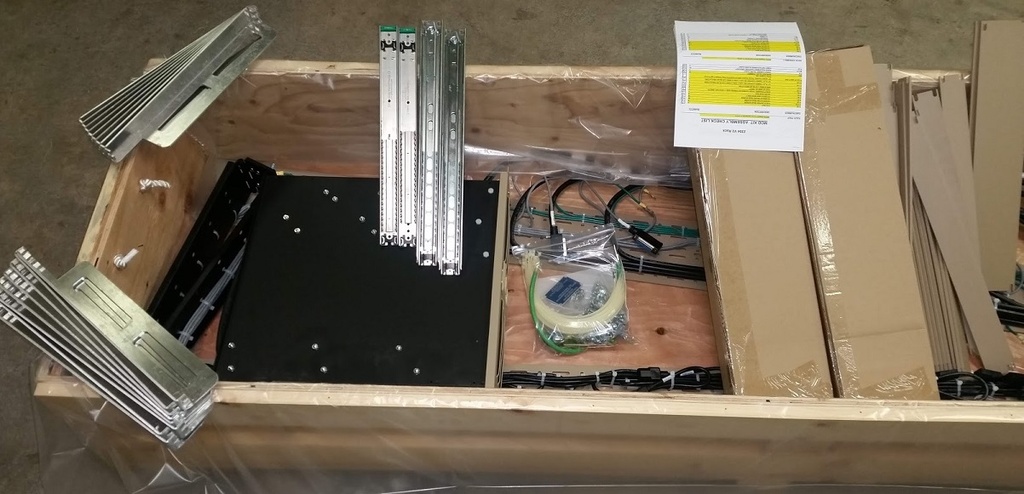

* Note: Example of Mod-Kit crate with all included rack components ready for shipping

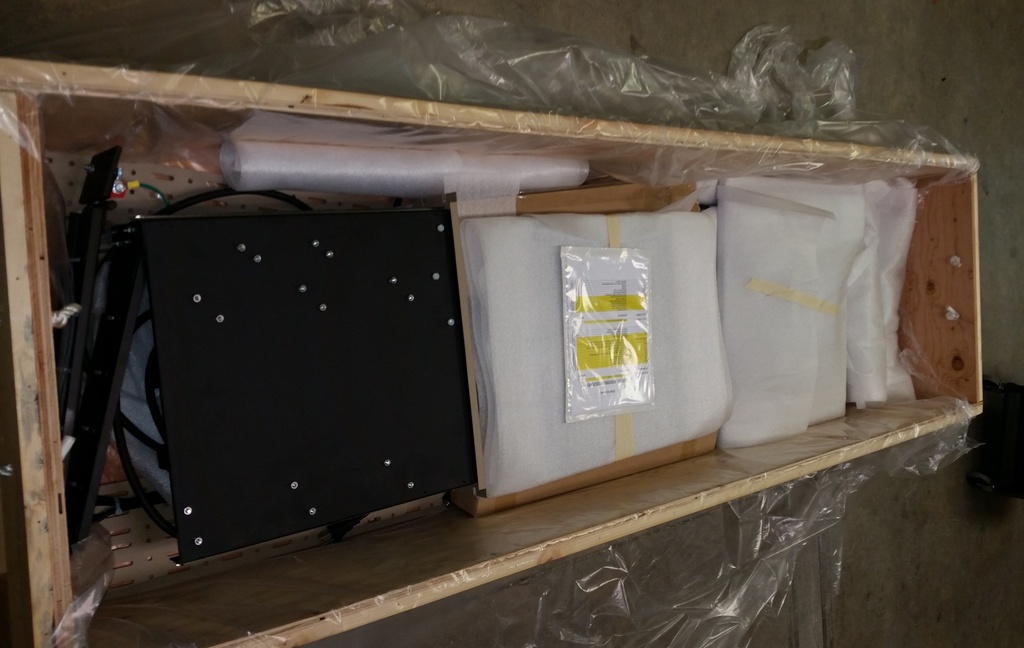

* Note: Example of Mod-Kit crate with all included rack components ready for shipping
